Custom designed Abel Gates are built to last.

Recognized as a market leader and innovator, Abel Slide Gates are sought globally for their robust performance, maintenance friendly designs and overall value. We were the first to incorporate roller wheels to aid in gate performance.

The Abel Universal Gate Frame allows plug and play performance across our product range. Manufactured in 12 standard sizes, our compact and maintenance friendly, customizable designs allow faster field changes and repairs without the need to replace the entire gate. This modern approach improves space utilization, performance and reduces downtime.

Custom Solutions to fit Your System

Can be Fitted With a Variety of Actuators
Painted, Powder Coated, Stainless Steel or Hot Dipped Galvanized
Abrasion Resistant Components
Custom Frame Sizes Available
Positioning Sensors
TEFC and Explosion Proof Options
Compatible with Automated Control Systems

Abel Slide Gates

Products

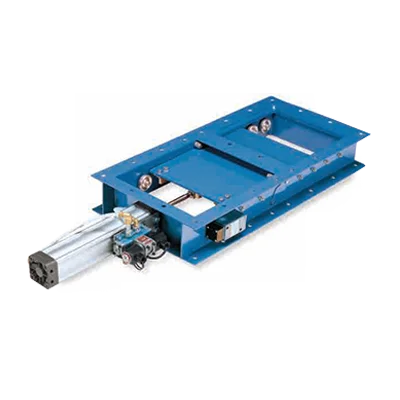

Universal Air Slide and Hydraulic Cylinder Gates

Universal Air Slide and Hydraulic Cylinder Gates

View Details

Universal Air Slide and Hydraulic Cylinder Gates

Most Popular Abel Gate
Ruggedly Built Roller Slide Gate
Available Electric Solenoid Valve
Available Limit Switches
Internal or External Cylinder Mounts

Sizing Chart

SIZE	A	B	C	D*	E	F	CYL.BORE
6: Sq.	6″	10″	21 1/8″	3 Holes @ 4″ O/C	4 1/2″	8 1/8″	2″
8″ Sq.	8″	12″	25 1/8″	3 Holes @ 5″ O/C	4 1/2″	10 1/8″	2″
10″ Sq.	10″	14″	19 1/8″	4 Holes @ 4″ O/C	4 1/2″	12 1/4″	2 1/2″
12″ Sq.	12″	16″	33 1/8	4 Holes @ 4 21/32″ O/C	4 1/2″	14 1/4″	2 1/2″
13″ Sq.	13″	17″	35 1/8″	4 Holes @ 5″ O/C	4 1/2″	15 1/4″	2 1/2″
14″ Sq.	14″	18″	37 1/8″	5 Holes @ 4″ O/C	4 1/2″	16 1/4″	2 1/2″
15″ Sq.	15″	19″	39 1/8″	5 Holes @ 4 1/4″ O/C	4 1/2″	17 1/4″	2 1/2″
16″ Sq.	16″	20″	41 1/8″	5 Holes @ 4 1/2″ O/C	4 1/2″	18 1/4″	3 1/4″
18″ Sq.	18″	22″	35 1/8″	6 Holes @ 4″ O/C	4 1/2″	21′	3 1/4″
20″ Sq.	20″	24″	49 1/8″	6 Holes @ 4 13/32″ O/C	4 1/2″	23″	3 1/4″
22″ Sq.	22″	26″	53 1/8″	7 Holes @ 4″ O/C	4 1/2″	25″	3 1/4″
24″ Sq.	24′	28″	57 1/8″	7 Holes @ 4 11/32″ O/C	6″	27″	4″
30″ Sq.	30″	34″	69 1/8″	9 Holes @ 4″ O/C	8″	33″	5″
36″ Sq.	36″	40″	81 1/8″	9 Holes @ 4 7/32″ O/C	8″	39″	6″

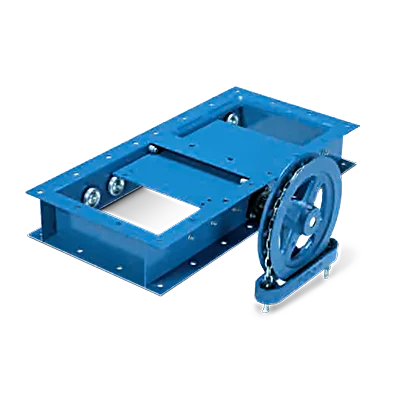

Universal Rack and Pinion Slide Gates

Universal Rack and Pinion Slide Gates

View Details

Universal Rack and Pinion Slide Gates

Manually Controlled Gate
Universal Frame Design
Easy to Upgrade to Other Actuator Types
1” Steel Control Shaft

Sizing Chart

SIZE	A	B	C	D*	E	SHAFT DIAM.
6″ Sq.	6″	10″	21 1/8″	3 Holes @ 4″ O/C	4 1/2″	1″
8″ Sq.	8″	12″	25 1/8″	3 Holes @ 5″ O/C	4 /12″	1″
10″ Sq.	10″	14″	29 1/8″	4 Holes @ 4″ O/C	4 1/2″	1″
12″ Sq.	12″	16″	33 1/8″	4 Holes @ 4 21/32″ O/C	4 1/2″	1″
13″ Sq.	13″	17″	35 1/8″	4 Holes @ 5″ O/C	4 1/2″	1″
14″ Sq.	14″	18″	37 1/8″	5 Holes @ 4″ O/C	4 1/2″	1″
15″ Sq.	15″	19″	39 1/8″	5 Holes @ 4 1/4″ O/C	4 1/2″	1″
16″ Sq.	16″	20″	41 1/8″	5 Holes @ 4 1/2″ O/C	4 1/2″	1″
18″ Sq.	18″	22″	45 1/8″	6 Holes @ 4″ O/C	4 1/2″	1″
20″ Sq.	20″	24″	49 1/8″	6 Holes @ 4 13/32″ O/C	4 1/2″	1″
22″ Sq.	22″	26″	53 1/8″	7 Holes @ 4″ O/C	4 1/2″	1″
24″ Sq.	24″	28″	57 1/8	7 Holes @ 4 11/32″ O/C	6″	1″
30″ Sq.	30″	34″	69 1/8″	9 Holes @ 4″ O/C	6″	1 1/2″
36″ Sq.	36″	40″	81 1/8″	9 Holes @ 4 7/32″ O/C	6″	1 1/2″

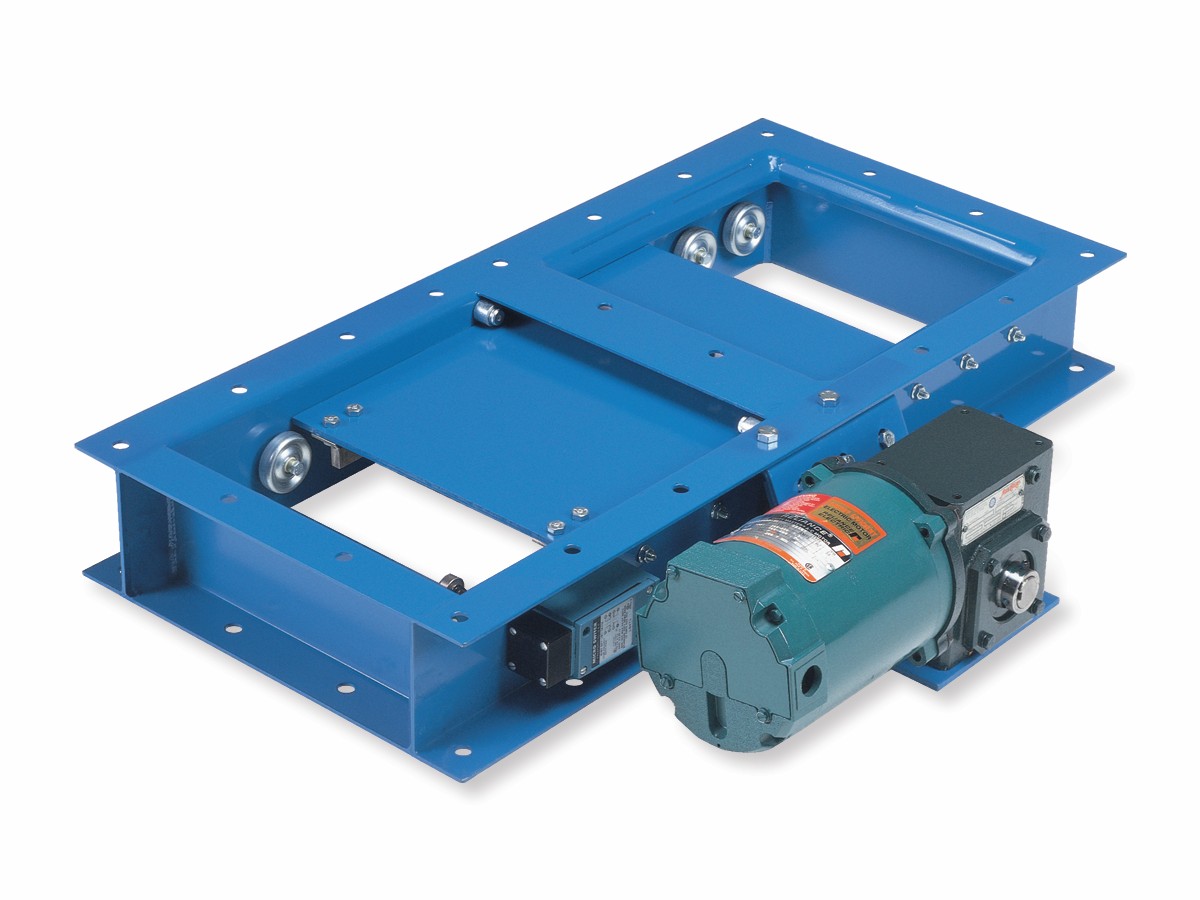

Electric Actuator Slide Gates

Electric Actuator Slide Gates

View Details

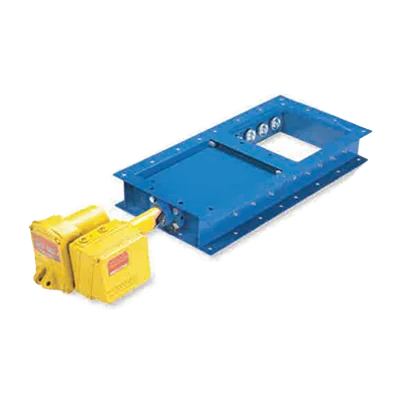

Electric Actuator Slide Gates

Allows Precise Positioning
Simple, Single Phase Electrical Operation
Accurate Position Feedback
Automated Control System Compatible
NEMA 12 or Explosion Proof
Reliable in Harsh Industrial Environments

Sizing Chart

SIZE	A	B	C	D	E*	F
6″ Sq.	6″	10″	20 3/8″	11 7/16”	3 Holes @ 4” O/C	6″
8″ Sq.	8″	12″	30 3/8″	11 7/16”	3 Holes @ 5” O/C	6″
10″ Sq.	10″	14″	34 3/8″	11 7/16”	4 Holes @ 4” O/C	6″
12″ Sq.	12″	16″	38 3/8″	11 7/16”	4 Holes @ 4 21/32” O/C	6″
13″ Sq.	13″	17″	46 3/8″	11 7/16”	4 Holes @ 5” O/C	6″
14″ Sq.	14″	18″	48 3/8″	11 7/16”	5 Holes @ 4” O/C	6″
15″ Sq.	15″	19″	50 3/8″	11 7/16”	6 Holes @ 3 1/2″” O/C	6″
16″ Sq.	16″	20″	52 3/8″	11 7/16”	5 Holes @ 4 1/2” O/C	6″
18″ Sq.	18″	22″	56 3/8″	11 7/16”	6 Holes @ 4” O/C	6″
20″ Sq.	20″	24″	67 1/8″	11 7/16”	6 Holes @ 4 13/32” O/C	6″
22″ Sq.	22″	26″	7- 3/8″	11 7/16”	7 Holes @ 4” O/C	6″
24″ Sq.	24″	28″	74 3/8″	11 7/16”	7 Holes @ 4 11/32” O/C	6″
30″ Sq.	30″34″	92 3/8″		11 7/16”	9 Holes @ 4” O/C	6″
36″ Sq.	36″	40″	110 3/8″	11 7/16”	10 Holes @ 4 1/4” O/C	6″

Standard heavy duty electric drives, 115 volt, 60 HZ, single phase.
Groups E, & G enclosure standard.
*Approximate spacing. Contact us for detailed information.

Rod and Pipe Control Gates

Rod and Pipe Control Gates

View Details

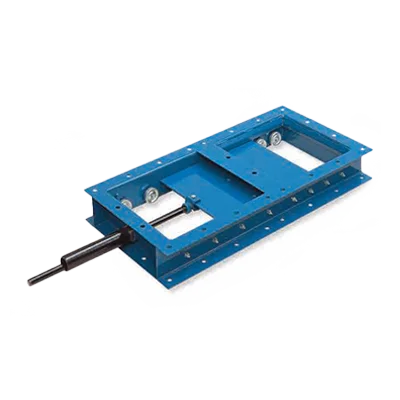

Rod and Pipe Control Gates

Designed for Use Under Round Storage
Heavy, Roller Slide Design
Resists Freezing and Sticking
Rod and Pipe Actuators Promote Positive Function

Sizing Chart

SIZE	A	B	C	D*	E
10 Sq.	10″	14″	29 1/8″	4 Holes @ 4″ O/C	4″
12″ Sq.	12″	16″	33 1/8″	4 Holes @ 4 21/32″ O/C	4″
13″	13″	17″	35 1/8″	4 Holes @ 5″ O/C	4″
14″ Sq.	14″	18″	37 1/8″	5 Holes @ 4″ O/C	4″

*Approximate spacing. Contact us for detailed information.

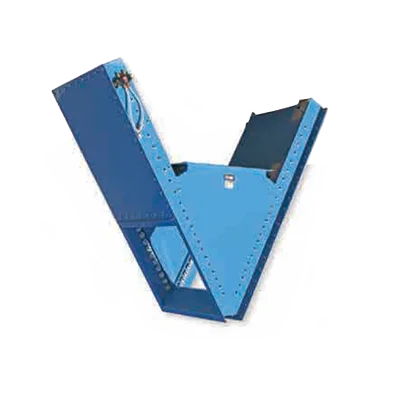

V-Type and K-Type Gates and Valves

V-Type and K-Type Gates and Valves

View Details

V-Type and K-Type Gates and Valves

Feature up to a 60° Free Flow Design
Full Range of Actuator Options
Built for Dust Tight Operation
Wide Range of Available Sizes
Controlled by Air Cylinder or Electric Motor
V-Type Constructed with Two Flat Slide Gates with a Common Inlet
Maintenance-Friendly Design For Longer Life

MODEL	A	B	C	D	E	F
VG-10	10″	12″	14″	35.25″	37.25″	42.25″
VG-12	12″	14″	16″	38.75″	41.25″	46.38″
VG-16	16″	18″	20″	43.63″	50.38″	55.44″
VG-18	18″	20″	22″	50.06″	54.38″	59.44″
VG-20	20″	22″	24″	53.56″	58.38″	63.44″
VG-24	24″	26″	28″	61.02″	67.00″	72.09″
VG-30	30″	32″	34″	79.59″	79.59	85.68

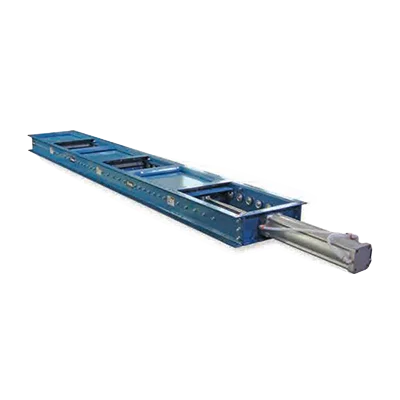

Abel Ladder Gates

Abel Ladder Gates

View Details
