DETAILS

“FB” Flat-Bottom En-Masse

Flat-Bottom conveyors are designed to carry the maximum volume of material within a minimum size trough structure with true En-Masse conveying. These conveyors provide a gentle material handling in a totally enclosed and dust tight unit, which provides less product degradation at time of discharge. Flat-Bottom conveyors are most effective in horizontal and low incline applications, where the rise is less than 14°. Some material, depending on its behavior, can use a bend section within an approved range of incline. These Flat-Bottom conveyors offer several inlet, gate discharge, chain and flight options to match specific material handling requirements.

OPTIONS

“FB” Flat-Bottom En-Masse – Options

> End Relief Doors
> Inspection Doors
> Slack Chain Device
> Direct Inlet
> By-Pass Inlet
> Pan-Feeder Inlet

> A.R. STEEL Bottom
> A.R. Steel Liners
> Return Rail
> Incline Bend Section
> Inverted Bend Section
> Backing Flights

> Recycling Cups
> Contoured Tail

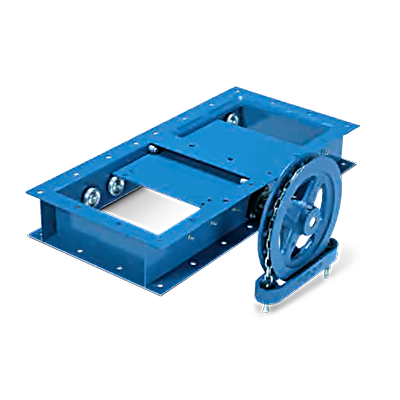

> Discharge Gates
> Reversing Drive
> Complete Drive Package

Conveyor with Chain Return Rails

Conveyor with Chain Idler Sprocket

CAPACITY

"FB" FLAT-BOTTOM CAPACITIES
SIZE	100 F.P.M.		125 F.P.M.		150 F.P.M.		175 F.P.M.
	B.P.H.	C.F.H.	B.P.H.	C.F.H.	B.P.H.	C.F.H.	B.P.H.	C.F.H.
810	1600	2000	2000	2500	2400	3000	2800	3500
1210	2500	3125	3125	3906	3750	4687	4375	5468
1213	3400	4250	4250	5312	5100	6375	5950	7437
1513	4300	5375	5375	6718	6450	8062	7525	9406
1218	5400	6750	6750	8437	8100	10125	9450	11812
1518	6800	8500	8500	10625	10200	12750	11900	14875
1818	8200	10250	10250	12812	12300	15375	14350	17937
2118	9600	12000	12000	15000	14400	18000	16800	21000
2418	11000	13750	13750	17187	16500	20625	19250	24062
2124	12800	16000	16000	20000	19200	24000	22400	28000
2424	14600	18250	18250	22812	21900	27375	25500	31875
3024	18300	22875	22875	28593	27450	34312	32025	40031

DIMENSIONS

"FB" FLAT-BOTTOM DIMENSIONS
SIZE	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	S	T	U	V	W	X	Y
810	8	37530	14-1/2	39573	18-1/2	24	27	39512	37530	37347	24	42384	42384	25	36-1/16	12	39452	6	14-5/8	23-5/8	14	37347
1210	12	37530	14-1/2	39573	18-1/2	24	27	39512	37530	37347	24	42384	42384	25	36-1/16	12	39452	10	18-5/8	27-5/8	14	37347
1213	12	13	17	39606	20-1/2	24	31	39512	37591	37347	28	42403	42403	30	41-1/16	12	39452	10	18-5/8	27-5/8	16	37347
1513	15	13	17	39606	20-1/2	24	31	39512	37591	37347	28	42403	42403	30	41-1/16	12	39452	13	21-5/8	30-5/8	16	37347
1218	12	18	22	42620	22	24	34	39512	15	9	38	42407	42407	36	47-1/16	18	39452	10	18-5/8	27-5/8	16-1/2	37377
1518	15	18	22	42620	22	24	34	39512	15	9	38	42407	42407	36	47-1/16	18	39452	13	21-5/8	30-5/8	16-1/2	37377
1818	18	18	22	42620	22	24	34	39512	15	9	38	42407	42407	36	47-1/16	18	39452	16	24-5/8	33-5/8	16-1/2	37377
2118	21	18	22	42620	22	24	34	39512	15	9	38	42407	42407	36	47-1/16	18	39452	19	27-5/8	36-5/8	16-1/2	37377
2418	24	18	22	42620	22	24	34	39512	15	9	38	42407	42407	36	47-1/16	18	39452	22	30-5/8	39-5/8	16-1/2	37377
2124	21	24	28	39787	25	30	40	39543	24	9	46-3/8	42415	42407	36	47-1/16	24	39452	19	27-5/8	36-5/8	19-1/2	37377
2424	24	24	28	39787	25	30	40	39543	24	9	46-3/8	42415	42407	36	47-1/16	24	39452	22	30-5/8	39-5/8	19-1/2	37377
3024	30	24	28	39787	25	30	40	39543	24	9	46-3/8	42415	42407	36	47-1/16	24	39452	28	36-5/8	45-5/8	19-1/2	37377
